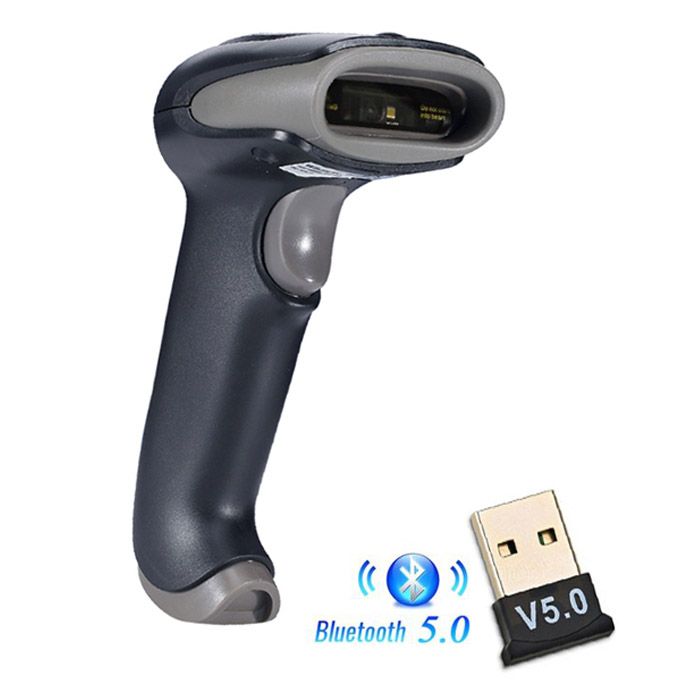

Speed-X 3200 2D CMOS Bluetooth Barcode Scanner

Description

Speed-X 3200 2D CMOS Bluetooth Interface Handheld Barcode Scanner With Receiver

(2D CMOS Wireless 2.4G Handheld Barcode Scanner)

Technical Parameters

Wireless specifications

• Communications 2.4GHz
• Communication frequency 2.402 to 2.480GHz
• Transmission range 30M?In an empty area 30M ?
• Data rate 1Mbps
• Memory 100000@13Byte barcode
• Battery capacity 1500mAh (Lithium battery)
• Charging time 4.5H
• The lifetime of the full charge is 4h?
• continuous reading situation? 9.5h
• Manual reading situation
• More than 15 days? Stand-by time
• Communication mode Read-time mode/Inventory mode

Electrical Characteristics

• Interface
• USB HID KEYBOARD
• Wireless receiver
• Voltage requirement
• Max:120mA Min?50mA

Optical Characteristics

• Photosensor CMOS array sensor
• SENSOR RESOLUTION 648 X 488 Pixels
• Light source
• White LED
• Aim light source
• Red Bar LED

Performance Characteristics

• Decode angle
• Pitch angle:±60°; Skew angle:±60°; Tilt angle:±180°
• Min resolution 1D 4mil 2D 10mil
• Min.PCS value 15% UPC/EAN 13?13mil?
• Field of View 46°(H),35°(V)
• Identification
• 1D? Codabar?Code128?Code11?Code32?Code39?Code93?Composite?
• EAN/UPC,EAN-8,EAN-13,GS1 DataBar Expanded?GS1 DataBar Limited?GS1 DataBar
• Omnidirectional?Hong Kong 2 of 5? China Post??
• Interleaved 2 of 5? Matrix 2 of 5?
• Pharmacode.RSS-14,RSS-LIMITED,RSS-EXPANDED,Industrial 2 of 5,Telepen,Trioptic
• Code, UPC-A, UPC-E
• 2D?
• Aztec Code?
• Code block F?
• DOT_CODE, HANXIN, Maxicode?MicroPDF417?Micro
• QR Code?MSI?PDF417,QR Code, DataMatrix

Physical Characteristics

Dimensions

• Scanner? 95mm×70mm×168 mm? L x W x H?
• Receiver? 83mm*18mm*13mm(L*W*H)

Weight

• Scanner? 186g
  Receiver? 16g

Environmental Characteristics

• Temp
  0°?50°C / 32°?122°F(operation) /-10°?60°C /14°?140°F(storage)
• Humidity
  20 – 85% (operation) ) 20 – 95% (storage)
• Shock drop test
  1.5m drop onto concrete surface
• Ambient Light:
  fluorescent light 4000 lx max ,
  direct sun light 80,000 lx max ,white light 4000 lx max

Decoding Depth of Field

• Symbology Resolution Nearest Farthest
• Code 39 20mil 5.5cm 35cm
• Code 128 15mil 6cm 31cm
• EAN-13 13.34mil 6cm 25cm
• QR code 20mil 4cm 21cm
• PDF417 13.34mil 3cm 29cm
