| Model | SpeedFace-V4L |
| Display | 4″ ISP LCD Touch Screen (480*800) |
| Camera | Binocular Camera@ 2MP |
| Operation System | Linux |
| Hardware | 900MHz Dual Core CPU; 512MB RAM / 512 MB ROM; 2MP Binocular Camera; Adjustable LED Supplement Lighting |
| Authentication Method | Face / Palm (Customized) / Card / Password (Virtual Keypad) |
| Fingerprint Template Capacity | / |
| Face Template Capacity | 1,000 (1:N) (Optional:2,000) 1,000 (1:1) (Optional:2,000) |
| Palm Template Capacity | 1000 (1:N) (Customized) |
| Card Capacity | 1,000 (Optional:2,000) |
| Transaction Capacity | 150,000 |
| Biometric Verification Speed | less than 1 sec (Facial Recognition) less than 0.35 Sec (Palm Recognition) |
| Touchless Biometric Recognition Distance | 1cm to 100cm (Facial Recognition) Up to 50cm (Palm Recognition) (Customized) |
| False Acceptance Rate (FAR) % | FAR ≤ 0.01% (Visible Light Facial Recognition) FAR ≤ 0.05% (ZKPalm V12.0) |
| False Rejection Rate (FRR) % | FRR ≤ 0.02% (Visible Light Facial Recognition) FRR ≤ 1.8% (ZKPalm V12.0) |
| Biometric Algorithm | ZKFace V3.9 ArmaturaPalm |
| Card Type | ID Card@125 kHz (Standard) 13.56MHz IC Card (Optional) HID card (Optional) Felica card (Optional) |
| QR Code | Dynamic or Static QR codes on the ZKBio CVAccess mobile application QR code |
| Communication | TCP/IP*1, USB Host*1, Wi-Fi (Optional), Wiegand Input*1, Wiegand Output*1, RS485 *1*, 3rd-party Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm Output*1, Aux Input*1 |
| Standard Functions | ID Card, ADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods |
| Power Supply | DC 12V 3A |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimension | 157.94*72.94*23 mm (L*W*H) |
| Gross Weight | 0.26 kg |
| Net Weight | 0.85 kg |
| Supported Software | Software: ZKBio CVAccess Mobile App: ZSmart Cloud Service: ZKBio Zlink |
| Installation | Wall-mount |
| Certifications | ISO14001, ISO9001, CE, FCC |

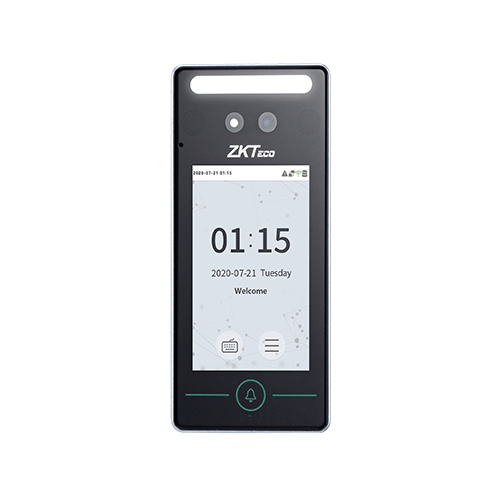

SpeedFace-V4L
Linux-Based Hybrid-Biometric Access Control &Time and Attendance Terminal with Visible Light Facial Recognition & Palm Recognition (Customized)
· Visible Light Facial Recognition
· Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
· Multiple verification methods: Face / Palm (Customized) / Card / Password
· Available card modules: 125kHz ID card / 13.56MHz IC card / HID card / Felica card
· Supplement light with adjustable brightness
· 1000 face templates capacity, 1000 palm templates capacity (Customized)
